Lynx Video Display Boards

Lynx Video Display Boards
Our Price


Call or request a quote for quantity discounts.
Note: If a size won't add to your cart, it is SOLD OUT. Sold out apparel will be notified by email.

All sizes are ADULT US and MENS unless it specifically says womens or W in the name. Women should order 1.5 less (ex. a womens 7 is a mens 5.5)

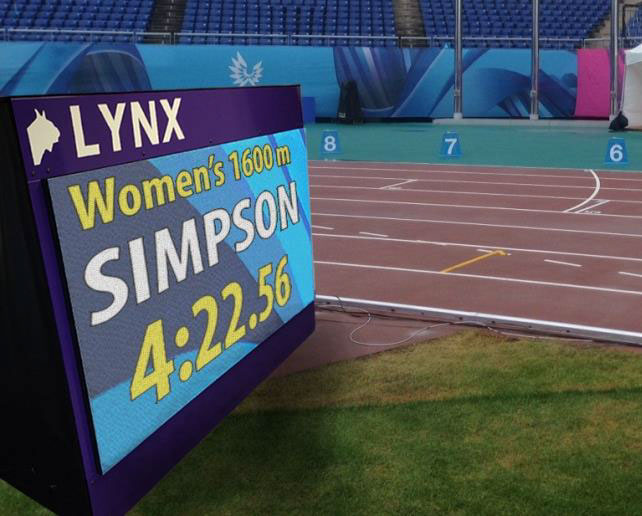

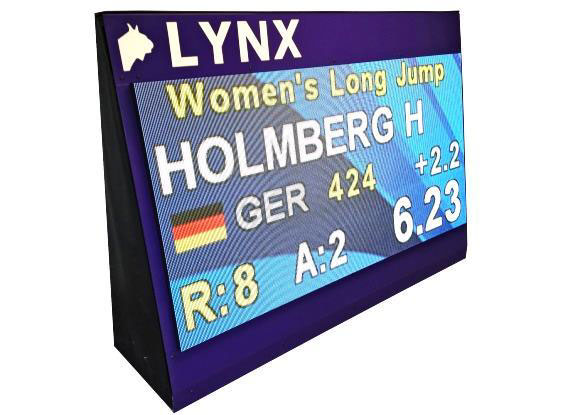

The LED infield video displays from Lynx are custom designed to meet the demands of championship-level WA athletics events. These modular displays are available in 1, 2, or 3-sided units and integrate seamlessly with FinishLynx technology to display live results throughout the venue. Each LED panel is 2 meters long by 1 meter high and provides high visibility text, images, or animated graphics for superior fan engagement in large indoor or outdoor venues. Each display unit can receive data independently over an HDMI connection, or multiple units can be connected with an Ethernet cable to broadcast a single video/graphic feed simultaneously to displays located across the infield.

Software Compatibility
The displays are compatible with the ResulTV live display software, FieldLynx field event software, the Video Display Module for EtherLynx Vision cameras, or any custom software capable of outputting graphics to an HDMI-connected display. Infield displays can connect to a laptop or netbook to show live field event scores and measurements using the FieldLynx software. Finish line displays can connect to ResulTV for advanced broadcast-ready graphics, or display race results and images directly from FinishLynx cameras using the Video Display Module.

Video Display Module on Lynx Vision Cameras
The 1, 2, and 3-sided displays can connect directly to an EtherLynx Vision series photo-finish camera running the Video Display Module to display live finish times, results, custom text, and even FinishLynx results images directly from the camera’s HDMI output. The VDM plug-in uses custom scoreboard scripts to output live race data and the options can be controlled from inside the FinishLynx software interface. Select images, send custom messages, or edit the display layout with a click of the mouse.

Construction & Frame

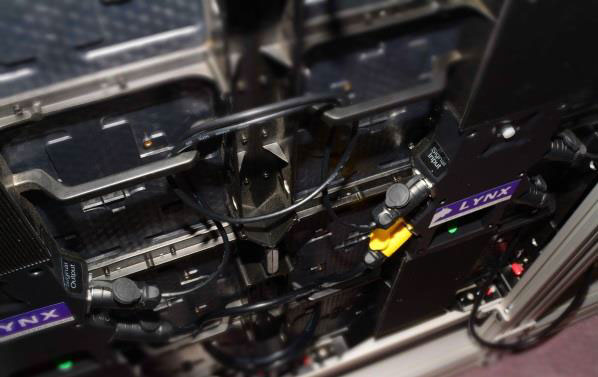

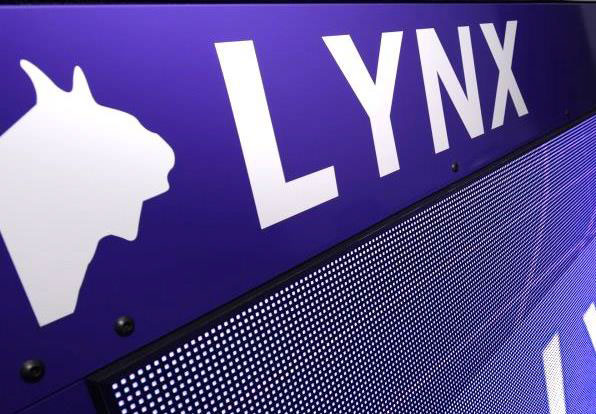

The premium aluminum frame offers solid, weatherproof construction and a lightweight design. Plus, the optional wheel assembly for the 2 and 3-sided units makes it easy to move the display within the infield or transport it between events. The large LED panels fit snugly into the aluminum frame and the rear connections are easily accessible during setup. The frame also includes removable vinyl panels to cover the rear of each display. Because the display units are modular, a 1-sided display can be turned into a 2 or 3-sided at a later date if necessary. Any of the four modular LED panels can also be swapped out or replaced at any time.

  • Large 336x168-pixel panels produce high-visibility graphics suitable for outdoor events
  •  Weatherproof design protects the LED hardware from harsh weather conditions
  •  Custom aluminum frame supports the LED panels and provides a polished, professional design
  •  Seamless data integration with FinishLynx cameras and software
  •  HDMI input is compatible with most graphic display programs
  •  Connect multiple display units using an Ethernet cable

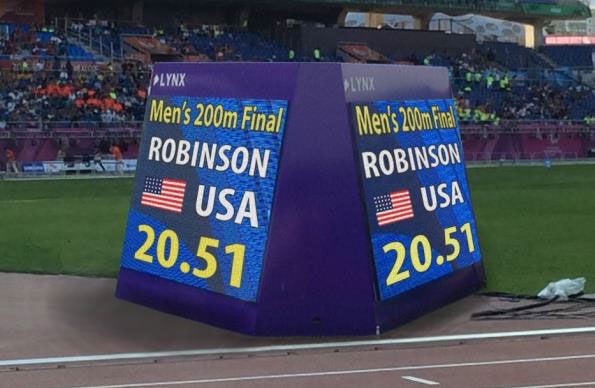

  •  Modular design means you can choose any combination of 1, 2, or 3-sided displays

Allow 3-4 weeks for configuration and build time. All shipping is by truck. The website will overcharge for shipping and we will refund it back to the actual freight after delivery.

Lynx PDF spec sheet

QSG - 1-Sided LED Display

To avoid delays, please provide a school/organization name in the shipping address when ordering (required by Lynx). We will email you for this info if you forget.
