FinishLynx EtherLynx Vision™ Timing Systems - Competition Packages

FinishLynx EtherLynx Vision™ Timing Systems - Competition Packages

(0 reviews)

Why buy your Lynx system from us? Our timing expert Doug Lynch is a former sales rep from Lynx so nobody knows the systems better than we do. We offer FREE SHIPPING (UPS ground only, mainland US only) on complete package Lynx systems bought online. Use Paypal Credit to defer your payments over 6 months interest free!  Designed by Lynx - the leader in Digital Photofinish Timing Systems. Connect your PC to an EtherLynx camera and you have a world-class photofinish system! All systems:

  • Run on any Windows computer.
  • Unlimited Capture time-can be used for Cross Country.
  • Automatic data interface with Wind Gauges, Scoreboards and raceclocks. (excludes scholastic package)
  • Integrates with all popular track meet software.
  • Simultaneous Capture and Evaluation on a single computer, eliminates the need for expensive networks.
  • Designed and built in the USA.
  • Water Resistant Camera Housing
  • All cameras in all packages are COLOR and powered by the network cable (power over ethernet or "p-o-e"), no AC power needed.
  • Modular Design - You can add optional features at a later date.

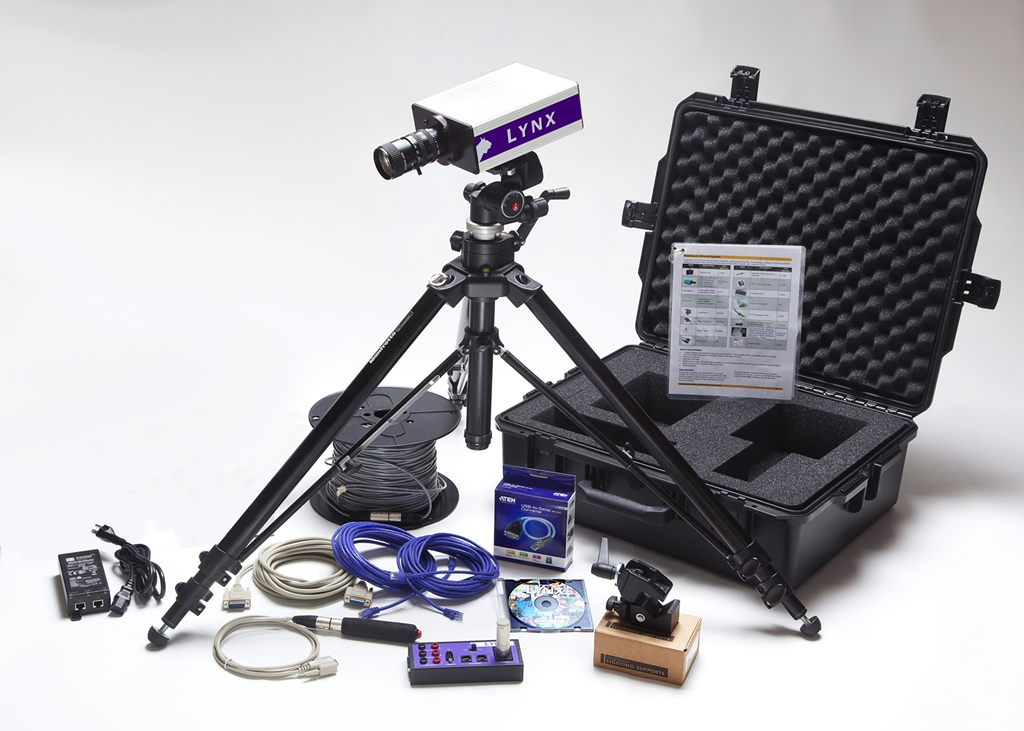

COMPETITION  PACKAGE: The Competition package is an all-inclusive, single-camera,color photo finish system for athletics. It needs only a computer to deliver I.A.A.F. compliant, Fully Automatic
Times (FAT) at track and field meets of any size.

  • Camera: EtherLynx Vision, 2,000 frames/second, full color images, timer-enabled, fully upgradeable

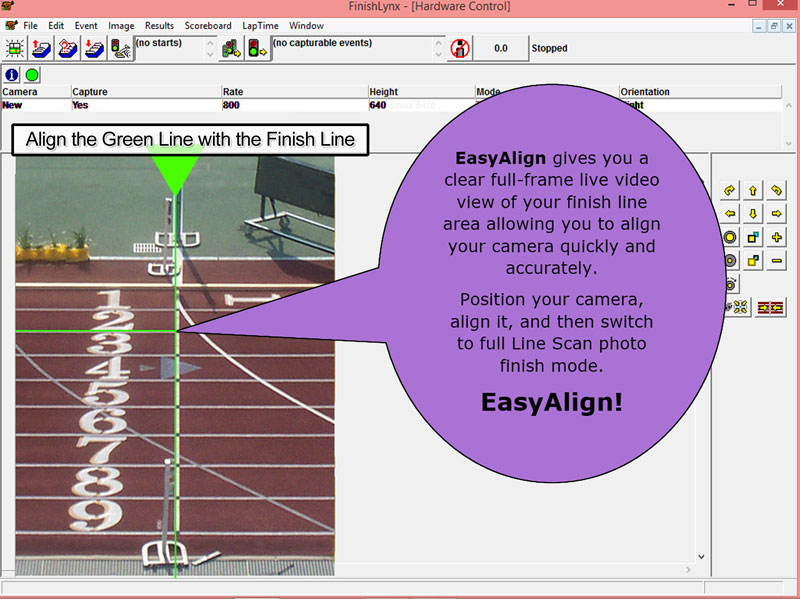

  • EasyAlign Full-Frame Video Alignment Mode
  • High-Resolution Option (2,000 fps x 1280 pixels of image height)
  • C-mount f1.2, 8-48mm Manual Zoom Lens
  • Wired Start System & Capture Button
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precision Adjustment
  • Built-in Interface to Scoreboards and Wind Gauges
  • Full-Access to Lynx Technical Support, 1-Year Renewable Warranty
  • FinishLynx32 Multi-Language* Photo Finish Software
  • LynxPad Multi-Language Meet Management Software

COMPETITION ELITE PACKAGE: The COMPETITION ELITE Package includes all the components of the COMPETITION Package – Plus a Remote Control Zoom Lens, and a complete RadioLynx Wireless Start system. With the addition of these components, there is no need to run long start cables, or use a ladder to adjust the lens, so the set-up and operation of the system becomes even easier.

  • Camera: EtherLynx Vision, 2,000 frames/second,full color images, timer-enabled, fully upgradeable
  • EasyAlign Full-Frame Video Alignment Mode
  • High-Resolution Option (2,000 fps x 1280 pixels of image height)
  • C-mount f1.2, 8-48mm Motorized Remote Control Zoom Lens: Zoom, Focus, Iris
  • RadioLynx Wireless Start System: start Sensor, transmitter, Receiver
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precision Adjustment
  • Built-in Interface to Scoreboards and Wind Gauges
  • Full-Access to Lynx Technical Support, 1-Year Renewable Warranty, FinishLynx32 Multi-Language* Photo Finish Software
  • RadioLynx Plugin for FinishLynx, Automatic Capture Mode (ACM) Plugin
  • LynxPad Multi-Language Meet Management Software

CHAMPIONSHIP PACKAGE: The CHAMPIONSHIP PACKAGE is an IAAF-approved athletics timing system that includes the full-color EtherLynx Vision photo-finish camera and a time-synchronized IdentiLynx video camera. This package includes all the components of the Competition Elite Package (like remote camera/lens capabilities and RadioLynx wireless start) as well as an IdentiLynx camera, ACM software plugin, 9-digit LED display, and IAAF-approved wind gauge. Plus all the components can be controlled directly from the FinishLynx timing software.

  • Camera: EtherLynx Vision, 2,000 frames/second, full color images, timer-enabled, fully upgradeable
  • EasyAlign Full-Frame Video Alignment Mode
  • High-Resolution Option (2,000 fps x 1280 pixels of image height)
  • C-Mount f1.2, 8-48mm Motorized Zoom Lens
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)
  • Ultrasonic Wind Gauge (IAAF compliant)

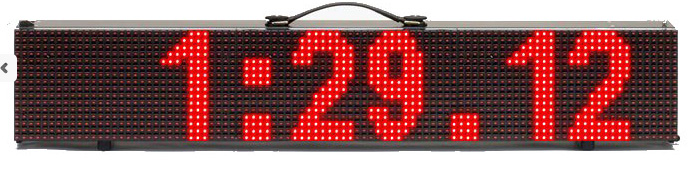

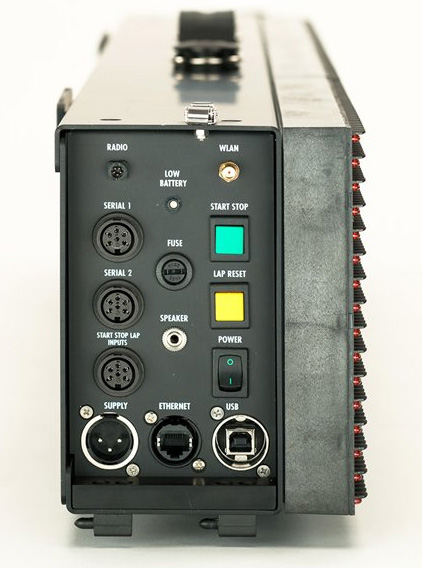

  • 9-Digit Alphanumeric LED Display (with tripod, bag and charger)
  • Remote Lens
  • Remote Camera Positioner
  • RadioLynx Wireless Start (Receiver & Transmitter)
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precision Adjustment
  • Built-in Interface to Scoreboards and Wind Gauges
  • Full-Access to Lynx Technical Support
  • 1-Year Renewable Warranty, FinishLynx32 Multi-Language* Photo Finish Software,
  • Automatic Capture Mode (ACM) Plugin, RadioLynx Wireless Start Plugin
  • LynxPad Multi-Language Meet Management Software

CHAMPIONSHIP ELITE PACKAGE: The Championship Elite Package includes two 2,000 fps EtherLynx Vision cameras so you can capture full-color photo finish images from both sides of the finish line. The package also includes an IdentiLynx full frame video camera so you can produce head-on video that is time-synchronized with your results.

  • Primary Camera: EtherLynx Vision, 2,000 fps x 1280 pixels, color images, timer-enabled, EasyAlign.LuxBoost Low-Light Amplification Option, Internal Battery Pack Option, Internal Camera Level Option, Electronic Filter Option, C-Mount f1.2, 8-48mm Motorized Zoom Lens (x2)
  • Second Camera: EtherLynx Vision, 2,000 fps x 1280, pixels, color images, EasyAlign, High-Res, fully upgradeable
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)
  • Ultrasonic Wind Gauge (IAAF compliant)
  • SeriaLynx (Wired/Wireless) Network Adapter
  • 9-Digit Alphanumeric LED Display
  • Remote Lens & Remote Camera Positioner (x2)
  • RadioLynx Wireless Start (Receiver & Transmitter)
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precise Adjustment, Professional Tripod with 3m+ elevated mounting
  • Built-in Interface to Scoreboards and Wind Gauges
  • Full-Access to Lynx Technical Support, 1-Year Renewable Warranty, FinishLynx32 Multi-Language* Photo Finish Software
  • Network COM Port Plug-in, Automatic Capture Mode (ACM) Plugin RadioLynx Wireless Start Plugin
  • LynxPad Multi-Language Meet Management Software

GRAND PRIX PACKAGE: The GRAND PRIX package is a world-class athletics timing system that includes two independent photo finish cameras and start systems for full timing redundancy. Because the
EtherLynx Vision and PRO cameras are linked to separate wireless start systems, it effectively creates two independent systems that capture simultaneously. This satisfies all the IAAF standards recommended for championship-level meets.

  • Primary Camera: EtherLynx Vision, 2,000 fps, color images, timer-enabled, EasyAlign, High-Res. LuxBoost Low-Light Amplification Option, Internal Battery Pack Option, Internal Camera Level Option, Electronic Filter Option, C-Mount f1.2, 8-48mm Motorized Zoom Lens
  • Second Camera: EtherLynx PRO, 3,000 fps,, color images, timer-enabled, Wireless-enabled, F-Mount f2.8, 28-75mm Zoom Lens, Through-the-Lens Viewer with Remote Iris,
  • AirLynx Wireless Gateway & Amplified Antenna (x2)
  • ResulTV Data Display Software
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)
  • Ultrasonic Wind Gauge (IAAF compliant)
  • SeriaLynx (Wired/Wireless) Network Adapter
  • 9-Digit Alphanumeric LED Display
  • Remote Lens & Remote Camera Positioner
  • RadioLynx Wireless Start System (x2)
  • All-inclusive Power, Ethernet, & Start Cable Set (x2)
  • Tripod & Mounting Hardware for Precise Adjustment, Professional Tripod with 3m+ elevated mounting
  • Built-in Interface to Scoreboards and Wind Gauges, Full-Access to Lynx Technical Support, 1-Year Renewable Warranty
  • FinishLynx32 Multi-Language* Photo Finish Software
  • Network COM Port Plug-in, Automatic Capture Mode (ACM) Plugin, RadioLynx Wireless Start Plugin,
  • LynxPad Multi-Language Meet Management Software

GRAND PRIX ELITE PACKAGE:  The GRAND PRIX ELITE Package is the most powerful athletics timing solution offered today. It includes all the cameras, software, displays, and wireless accessories you need to produce world-class photo finishes at international events. The system includes everything from the Grand Prix package plus a number of add-ons suitable for major IAAF meets.

  • Primary Camera: EtherLynx Vision, 2,000 fps, color images, timer-enabled, EasyAlign, High-Res. LuxBoost Low-Light Amplification Option, Internal Battery Pack Option, Internal Camera  Level Option, Electronic Filter Option, C-Mount f1.2, 8-48mm Motorized Zoom Lens
  • Second Camera: EtherLynx PRO, 5,000 fps,color images, timer-enabled, wireless-enabled, 5L5K Option for 5,000 frames/second capture, 5LZoom Option for 12x Zoom, 4,000 vertical pixels,  F-Mount f2.8, 28-75mm Zoom Lens, Through-the-Lens Viewer with Remote Iris,
  • AirLynx Wireless Gateway & Amplified Antenna (x2)
  • MicroGraph LED Display (32x128) with Mounting Stand
  • 6-Digit, 9", High-Visibility LED Display (x3)
  • 2-Digit, 3-Sided Digital Lap Counter
  • 16x64, 7mm, LED Graphic Display for wind readings
  • Wireless Connectivity for Displays and Wind Gauge
  • Short Range Wireless Photocell Kit (x2),
  • Double Photocell Kit with 15m Range
  • SeriaLynx (Wired/Wireless) Network Adapter (x5)
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)
  • Ultrasonic Wind Gauge (IAAF compliant)
  • Remote Lens & Remote Camera Positioner
  • RadioLynx Wireless Start System (x2)
  • All-inclusive Power, Ethernet, & Start Cable Set (x2)
  • Tripod & Mounting Hardware for Precise Adjustment, Professional Tripod with 3m+ elevated mounting
  • Full Access to Lynx Technical Support, 1-Year Renewable Warranty,
  • ResulTV Data Display Software
  • FinishLynx32 Multi-Language* Photo Finish Software, Network COM Port Plug-in, Automatic Capture Mode (ACM) Plugin, RadioLynx Wireless Start Plugin
  • LynxPad Multi-Language Meet Management Software

RadioLynx Only option (see related items) is for existing systems or add it to your basket for Competition package.

NEW: add an internal RadioLynx receiver to any camera. Choose Internal Radiolynx option in selection list per camera. You still need a transmitter and the plugin so this is in addition ot a standard RL add-on.

North American sales only, please contact Lynx for overseas sales. All systems must be licensed to an organization (school, timing company, city, etc..) and are non-returnable.

To avoid delays, please provide a school/organization name in the shipping address when ordering (required by Lynx). We will email you for this info if you forget.
