Gill Aluminum LJ/TJ Sand Pit Covers - sq ft

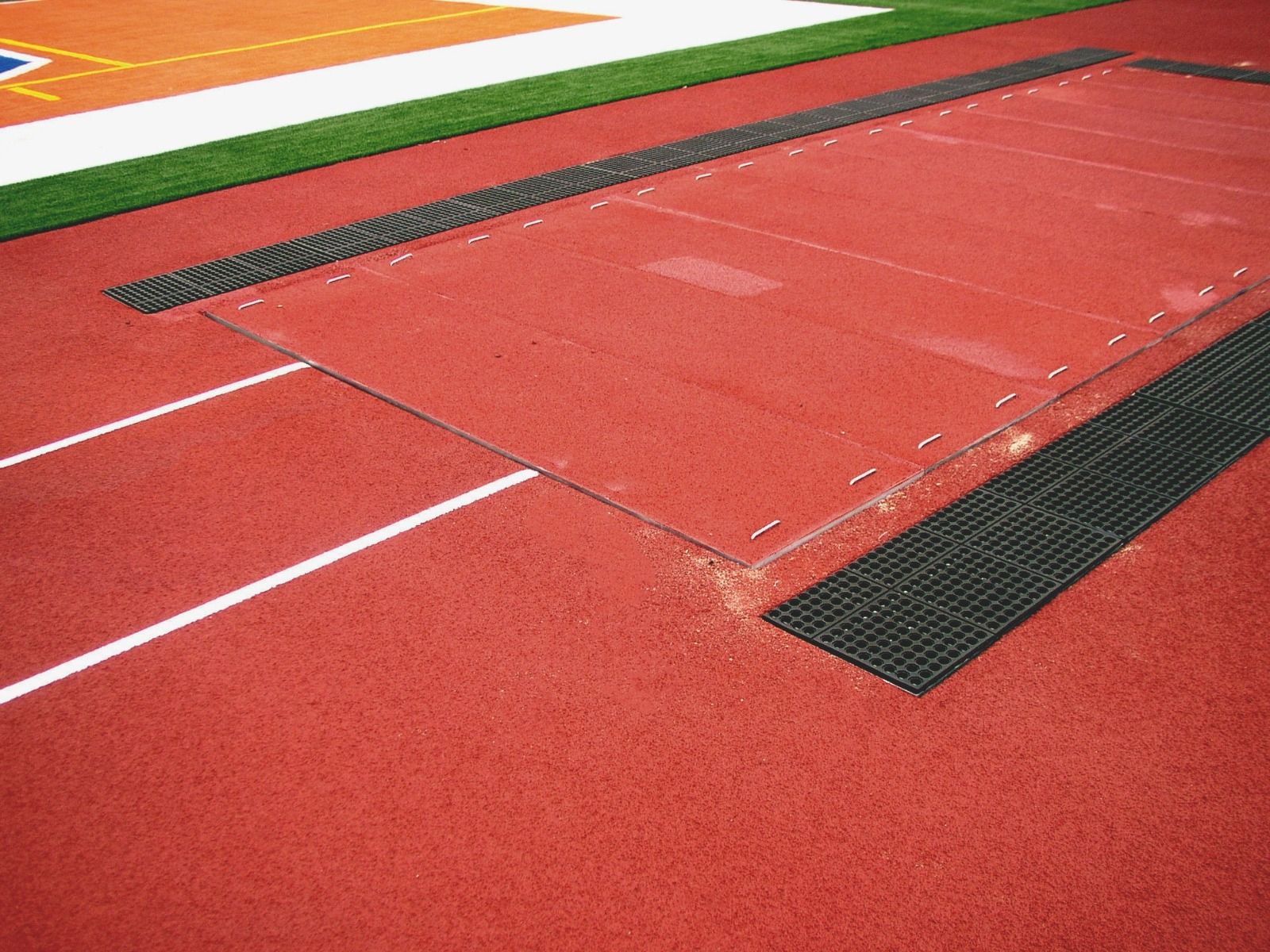

This LJ/TJ Sand Pit Cover is fabricated from extruded aluminum seat plank. The ideal cosmetic cover for your LJ/TJ sand pits. Three planks per panel are securely welded together in a frame of 2-3/8" x 1-1/2" x 3/16" aluminum angle. Each panel comes with four retractable handles for easy installation and removal.

A 2" wide supporting recess is required on each side wall for the panels. This recess is not required on the end walls. When not using a Gill pre-fabricated sand pit form, it is important to include a 2" "ledge" along the sides of the sand pit to accommodate the 730148 sand pit cover. The 730148 is designed to allow a track builder to apply the same surface as on the track for a seamless design. Manufacturing begins upon receipt of form 730148-2 (field check guide). A typical sand pit requires 10-11 cover panels.

Sold by the square foot. - PLEASE CALL TO ORDER 800-676-7463

730148 Instructions

(526.95 kB)

730148 CSI Spec

(28.37 kB)
730148 Dimensions Certification

(298.79 kB)
