FinishLynx EtherLynx Vision™ Timing Systems

Our Price

$5245.00

SKU Z5100SC^l
Type
Quantity
Call or request a quote for quantity discounts.
Note: If a size won't add to your cart, it is SOLD OUT. Sold out apparel will be notified by email.




All sizes are ADULT US and MENS unless it specifically says womens or W in the name. Women should order 1.5 less (ex. a womens 7 is a mens 5.5)

Why buy your Lynx system from us? Our timing expert Doug Lynch is a former sales rep from Lynx so nobody knows the systems better than we do. Use Paypal Credit to defer your payments over 6 months interest free!  Designed by Lynx - the leader in Digital Photofinish Timing Systems. Connect your PC to an EtherLynx camera and you have a world-class photofinish system! All systems:

  • Run on any Windows computer.
  • Unlimited Capture time-can be used for Cross Country.
  • Automatic data interface with Wind Gauges, Scoreboards and race clocks. (excludes scholastic package)
  • Integrates with all popular track meet software.
  • Simultaneous Capture and Evaluation on a single computer, eliminates the need for expensive networks.
  • Designed and built in the USA.
  • Water Resistant Camera Housing
  • All cameras in all packages are COLOR and powered by the network cable (power over ethernet or "p-o-e"), no AC power needed.
  • Modular Design - You can add optional features at a later date.

Click here to see a Package Comparison PDF.

SCHOLASTIC PACKAGE:

  • COLOR EtherLynx Vision™ Timer-enabled Camera.(600fps x 500pixels - 10x that of video based systems)
  • FinishLynxLite Software License. (no scoreboard or plugin support except radiolynx)
  • Lynxpad Meet Management Software
  • Capture Button, Carrying Case, Lens 2.8-10mm manual zoom lens
  • Normally-Closed Start Sensor and 500' Start Sensor Cable.
  • 6 ft.Tripod with Tripod Head.
  • EasyAlign™ camera alignment

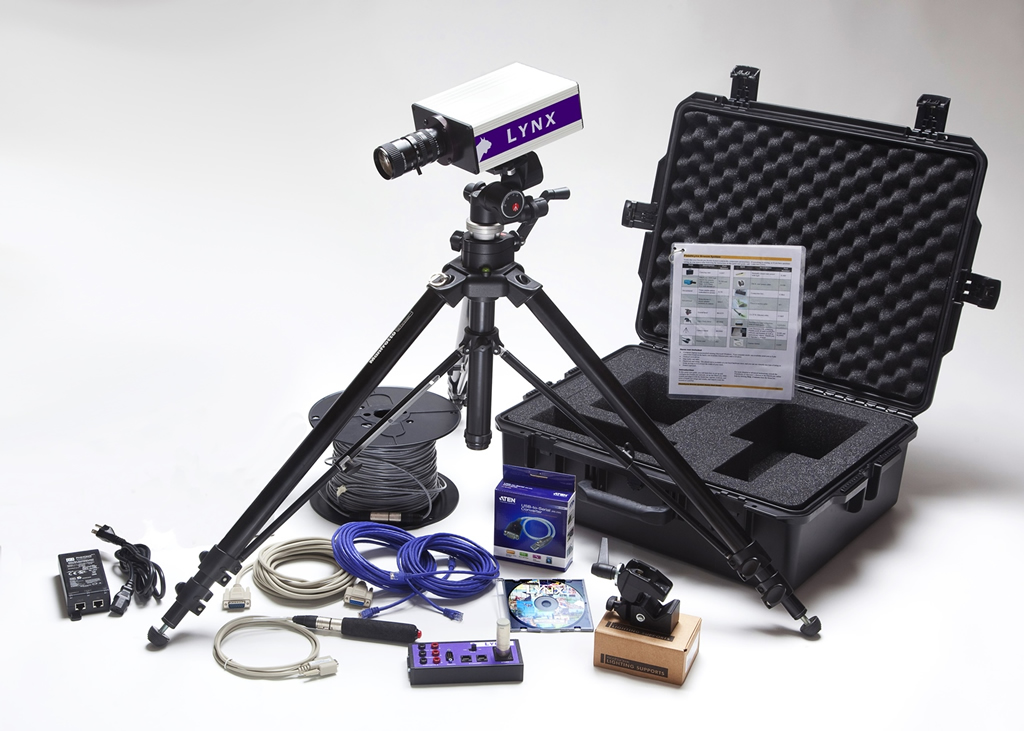

BRONZE PACKAGE:

  • COLOR EtherLynx Vision™ Timer-enabled Camera. (1000fps)
  • FinishLynx32 Software License with LynxPad Meet Management Software.
  • Capture Button, Carrying Case, C Mount 8-48mm Manual Zoom Lens
  • Normally-Closed Start Sensor w/Light and 500' Start Sensor Cable.
  • Tripod Head Clamp (for poles)and a Tripod with Tripod Head.
  • EasyAlign™ camera alignment

SILVER PACKAGE:

  • COLOR EtherLynx Vision™ Timer-enabled Camera. (2000fps)
  • FinishLynx32 Software License with LynxPad Meet Management Software.
  • Capture Button, Carrying Case, C-Mount 8-48mm Remote Zoom Lens and REMOTE POSITIONER unit.
  • ACM Auto-Caputre plugin.
  • Normally-Closed Start Sensor w/Light and 500' Start Sensor Cable.
  • Tripod Head Clamp (for poles)and a Tripod with Tripod Head.
  • EasyAlign™ camera alignment

GOLD PACKAGE

  • COLOR EtherLynx Vision™ Timer-enabled Camera. (2000fps)
  • FinishLynx32 Software License with LynxPad Meet Management Software AND Virtual Photo Beam Unit and Auto Capture plugin.
  • Capture Button, Carrying Case, C-Mount 8-48mm Remote Zoom Lens and REMOTE POSITIONER unit.
  • RadioLynx Wireless Start System
  • Normally-Closed Start Sensor w/Light and 500' Start Sensor Cable (use as a backup to the wireless).
  • 9 Digit Display Scoreboard.
  • IdentiLynx 2D camera package!
  • EasyAlign™ camera alignment
  • Tripod Head Clamp (for poles)and a Tripod with Tripod Head.

PLATINUM PACKAGE:

  • COLOR EtherLynx Vision™ Timer-enabled Camera. (2000fps). PLUS  2nd COLOR EtherLynx Vision™ Camera for reverse angle.(2000fps)
  • FinishLynx32 Software License with LynxPad Meet Management Software AND Virtual Photo Beam Unit and Auto Capture plugin.
  • Capture Button, Carrying Case, C-Mount 8-48mm Remote Zoom Lens and REMOTE POSITIONER unit for both cameras.
  • RadioLynx Wireless Start System with Internal camera receiver.
  • IdentiLynx 2D camera package!
  • EasyAlign™ camera alignment
  • Normally-Closed Start Sensor w/Light and 500' Start Sensor Cable (use as a backup to the wireless).
  • Portable LED Display
  • Tripod Head Clamps (for poles)and 2 Tripods (one 74" and one 105") with Tripod Heads.
  • Network Switch
  • VDM Video Display Module plugin

DIAMOND PACKAGE:

  • COLOR EtherLynx Vision™ Timer-enabled Camera. (2000fps). PLUS 2nd COLOR EtherLynx Vision™ Camera for reverse angle.(2000fps)
  • FinishLynx32 Software License with LynxPad Meet Management Software AND Virtual Photo Beam Unit and Auto Capture plugin.
  • Capture Button, Carrying Case, C-Mount 8-48mm Remote Zoom Lens and REMOTE POSITIONER unit for both cameras.
  • RadioLynx Wireless Start System with Internal camera receiver.
  • IdentiLynx 2D camera package!
  • EasyAlign™ camera alignment
  • Normally-Closed Start Sensor w/Light and 500' Start Sensor Cable (use as a backup to the wireless).
  • Infield Video LED Display
  • Tripod Head Clamps (for poles)and 2 Tripods (one 74" and one 105") with Tripod Heads.
  • Network Switch
  • Lux-Boost Low-light capture
  • Internal Battery option installed
  • ResulTV scoreboard software license
  • VDM Video Display Module plugin
  • Network COM plugin for sending data to scoreboards/wind gauge.
  • 1 Wireless SeriaLynx receiver
  • 1 Weatherproof Wind Gauge

Discounts and coupons are not available to use on any Lynx items.

SHIPPING WILL BE REFUNDED DOWN TO ACTUAL AFTER LYNX SHIPS THE ORDER. THE WEBSITE WILL OVERCHARGE TO COVER THIS. EMAIL FOR A CUSTOM QUOTE.

RadioLynx Only option (see related items) is for existing systems or add it to your basket for scholastic/bronze/silver systems. Remote C-Mount lens is highly recommended for Scholastic and Bronze systems.

NEW: add an internal RadioLynx receiver to any camera except scholastic cameras. Choose Internal Radiolynx option in selection list per camera. You still need a transmitter and the plugin so this is in addition to a standard RL add-on.

See related items for adding Radiolynx wireless starting to Scholastic/Bronze/Silver systems. LYNX ITEMS ARE NOT STOCKED, ALL ITEMS ARE SUBJECT TO BACKORDER AT LYNX.

CA Prop65 Warming - see https://www.p65warnings.ca.gov/

CA Prop 65 Warning

North American sales only (including exports), please contact Lynx for overseas sales. All systems must be licensed to an organization (school, timing company, city, etc..) and are non-returnable. Allow 2-6 weeks for delivery.

Options:

Battery: Internal battery pack allows the camera to withstand power loss

Electronic Filter: Electronically enable/disable low-light filters from FinishLynx software (not available on scholastic)

Level Function: Monitor the camera's level and orientation from FinishLynx software

LuxBoost: Amplifies available light for better race images in low-light conditions, Choose level 4 or Level 8 for extreme low light conditions.

GPS Synchronizer: Internal GPS Synchronizer for Vision Series Cameras included antenna

Wifi options available: Choose with or without the Airlynx Gateway (wireless router)

To avoid delays, please provide a school/organization name in the shipping address when ordering (required by Lynx). We will email you for this info if you forget.
